32kWh Capacity Stackable Inverter System with WiFi Module for Home Energy Storage

Name: 32kWh Capacity Stackable Inverter System with WiFi Module for Home Energy Storage
Brand: EXLIPORC
Price: 1 USD

Best 32kWh Capacity Stackable Inverter System with WiFi Module for Home Energy Storage wholesale

Battery Type : LiFePO4, LiFePO4

Model Number : LVB15WTC

Brand Name : EXLIPORC

Place of Origin : Guangdong, China

System Voltage : 51.2 V

Output Power Range : 32kwh

Dimension (L*W*H) : 850*660*500

Weight : 212KG(467.38lb)

System Type : Stackable, Floor-mounted

Type : ALL-IN-ONE

Communication Port : CAN, RS-232, RS485

Protection Class : IP22

Grid connection : Hybrid grid

Product name : Home Energy Storage Battery System

Battery cell : 3.2V LifePO4 Cell

BMS : Built-in

Usage : Slolar Energy System

Features : Long Cycle Life

Voltage : 48V/51.2V Optional

Application : Home Appliances

Certification : CE/RoHS/UN38.3/MSDS/IEC

OEM/ODM : Accepatable

MOQ : 1

Contact Now

4nrgy PI-51.2V 32kWh Stackable Inverter System 12kw 600Ah 3 Phase 220v/380v Active Balancer WiFi Module DDP +5A

Product Overview

Advanced 51.2V home energy storage system featuring stackable design, smart monitoring capabilities, and industrial-grade performance for residential and commercial applications.

32kWh Capacity Stackable Inverter System with WiFi Module for Home Energy Storage

Technical Specifications

Cell Model	LVB10WTC	LVB15WTC	LVB32WTC	LVB50WTC
Capacity	200Ah	280Ah	314Ah	314Ah
Rated Voltage	3.2V	3.2V	3.2V	3.2V
Internal Resistance	≤0.2mΩ	≤0.2mΩ	≤0.2mΩ	≤0.2mΩ
Combination Method	16S1P	16S1P	16S2P	16S3P

Electrical Characteristics	LVB10WTC	LVB15WTC	LVB32WTC	LVB50WTC
Nominal Voltage	51.2V	51.2V	51.2V	51.2V
Nominal Capacity	200Ah	300Ah	600Ah	980Ah
Energy	10.24kWh	15.360kWh	30.720kWh	50.176kWh
Useable Energy	≥95%	≥95%	≥95%	≥95%
Cycle Life	≥5000 cycles	≥10000 cycles	≥10000 cycles	≥11000 cycles

Standard Charge	LVB10WTC	LVB15WTC	LVB32WTC
Charge Voltage	57.6V±0.2V	57.6V±0.2V
Charge Current	100A	140A	140A
Max. Charge Current	200A	200A	200A

Environmental & Mechanical	LVB10WTC
Charge Temperature	0℃ to 45℃ @60±25% R.H.
Discharge Temperature	-20℃ to 55℃ @60±25% R.H.
Water Dust Resistance	IP20
Plastic Case	Sheet metal
Dimensions (mm)	630460265mm
Weight (kg)	About 89KG

Quality Assurance

Use Only The Highest Quality Batteries

Batteries that use the same standard as the country

Price advantage ≠ low quality: Large-scale production + direct purchase from the supply chain, procurement costs are 8-15% lower than peers, and tiered rebates are supported.

Core Features

High Performance & Long Lifespan: Incorporates A+ grade LiFePO4 cells with over 10,000 cycles and a 15-year design life, ensuring long-term stable operation.
Safety & Reliability: Equipped with a multi-level Battery Management System (BMS) that monitors and prevents risks like overheating, overcharging, and over-discharging in real time. Integrates non-toxic chemicals and aerosol fire extinguishers for household safety.
Smart Monitoring: Supports Wi-Fi and Bluetooth connectivity for remote battery status tracking via dedicated app, enabling one-click updates and real-time management.

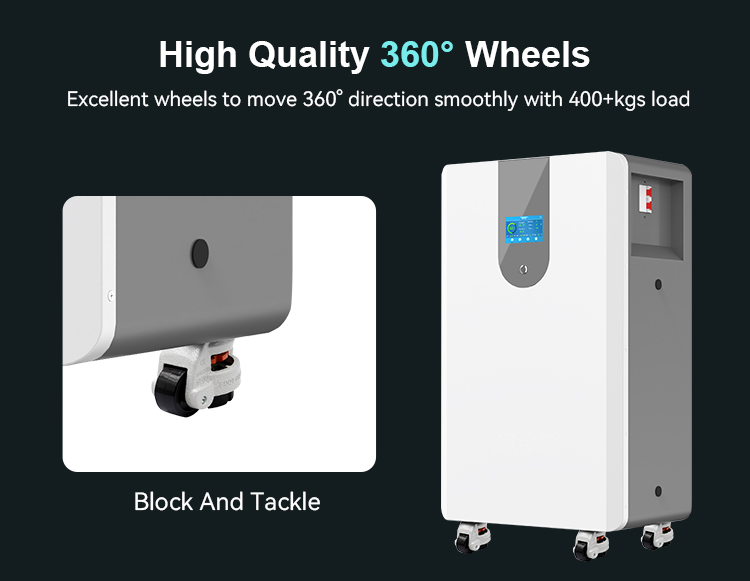

Flexible Installation: Modular design facilitates rapid stacking, saving space and adapting to diverse installation environments.
Eco-Friendly & Energy-Efficient: Heavy-metal-free construction meets CE, UN38.3, and other international certifications, supporting sustainable living.

Why Choose Us?

Expert Engineering Support: Our technical team provides 24/7 troubleshooting, firmware updates, and custom after-sale solutions to minimize downtime.
Quality Assurance: Rigorous testing (thermal, shock, cycle) ensures reliability in extreme conditions.
Eco-Friendly: Zero emissions, 95%+ energy efficiency, and recyclable LiFePO4 cells.

Keywords

Portable Home Battery Wall-Mounted Energy Storage Customizable Power System IEC62619 Certified Bluetooth/Wi-Fi Energy Monitor 51.2V Lithium Storage

Customer Feedback & Applications

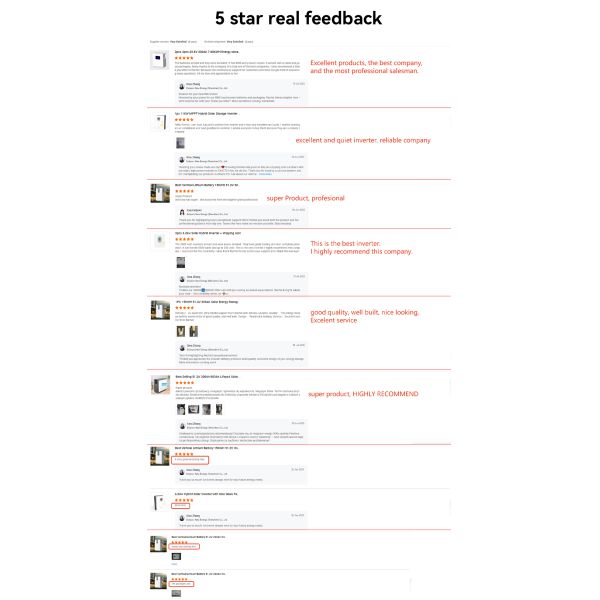

User Reviews and Case Studies:

User Feedback: Users in multiple countries (e.g., USA, DE, UK, Australia) have validated its efficiency and reliability
Typical Application: One household achieved a 30% reduction in electricity bills and 90% solar self-consumption after installation

Certifications

Frequently Asked Questions

Who are we?

We are based in Shenzhen, China, starting from 2011, selling to North America (50.00%), Northern Europe (10.00%), Southern Europe (5%), Central America (10.00%), Southeast Asia (10.00%), Eastern Europe (10.00%), South America (5.00%). There are total about 11-50 people in our office.

What can you buy from us?

We specialized in Lithium ion battery, Sodium ion battery, Home Energy storage system, LiFePO4 battery BMS, LiFePO4 battery BMS.

Why should you buy from us not from other suppliers?

EXLIPORC NEW ENERGY(SHENZHEN)CO.,LTD Focus on providing global with energy storage systems, lithium-ion batteries, inverters, is a research and development, manufacturing, sales, operation and maintenance as one of the whole industry chain service providers.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES; Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF; Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow; Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
